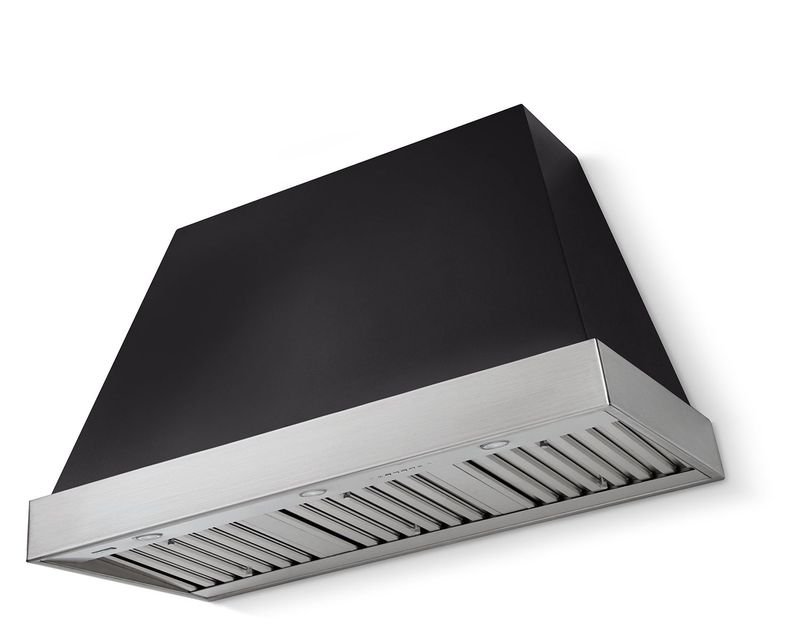

EUCLID
A large 3 speed blower operating at lower RPM maintains quiet operation, while bright LED lighting (drawing only 6 watts each) offers natural looking, 3000K color spectrum.
Electronic touch controls for all the hood features assures overall ease of operation. The commercial-style baffle filters effectively remove airborne contaminanents, while detergent inlet holes and grease exit holes guarantee superior dishwasher-safe cleaning.
Color Displayed: Matte Black
Trim Displayed: Brushed Nickel
Custom Colors and Finishes for our Hoods are available on request.
Please note that if you select a brass trim option, the trim will age over time because it is a “living metal.” This trim requires special care and instructions are included in the Installation/User Manual.
QUIET OPERATION
Large 3 speed blower operates at a lower RPM reducing the sound level.
LIGHTING
Bright LED lighting offers natural looking, 3000K color spectrum. The 36” hood features 2 lights, the 48” hood features 3 lights.
EASE OF OPERATION
Electronic touch controls for 3 speed blower and LED lights.
EASY CLEANING
Dishwasher safe, commercial style baffle filters for effectively removing airborne contaminants. Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning.
FLEXIBLE INSTALLATION
Mounting bars at top and bottom allow for attaching to stud supports. Open top and back design for centered duct location or offset top duct and/or rear offset discharge.
ENERGY EFFICIENT OPERATION
LED light bulbs draw only 6 watts each and energy efficient motors draw only 2.5 amps.
36” & 48”
Trapezoid
Hood Width x Depth x Height
36”W x 24”D x 30”H (600 cfm/8” collar)
48”W x 24”D x 30”H (1200 cfm/10” collar)
12”, 24” and 48” Tall
Custom Duct Cover heights are available
36” (30”H): 98 lbs
48” (30”H): 126 lbs
600 CFM models draw approx. 2.7 Amps
1200 CFM models draw approx. 5.4 Amps
Ranges from 1.5-7
